SSP031 series automatic high-speed single paper straw packaging machine
Basic introduction:
SSP031 series automatic high-speed single-film (paper) packaging machine is a device that automatically packs drinking straws into bags. The whole machine is composed of a drive motor, a transmission system, a film (paper) unwinding device, a straw filling device, an automatic sealing device, a product conveying device.. The machine is developed by my technical staff and has a high degree of automation and production speed. Filling and packaging are completed at one time.
Features:
1.Single packaging, filling and packaging are completed once.
2.Automatic counting, batch alarm, convenient secondary packaging.
3.Adjustable packaging speed.
4.Easy to operate, reliable performance.
Parameter:
|
Drive motor |
0.75kw（Inverter motor) |
|
|
Capacity |
500~600pcs/min |
|
|
Packing mode |
3 side sealing |
|
|
Packing material |
Film，Paper |
|
|
Straw specification |
Diameter |
Φ5～Φ13mm |
|
Length |
130～270mm |
|
|
Other specificaton(Different to standard) can customsize |
||
|
Machine size |
130～270mm |
|
|
Weight |
300kg |
|
Electric component list:
|
Name |
Specification |
Brand |
|
Motor |
0.75kw |
CHINA |
|
Inverter |
0.75kw |
Delta ,Taiwan |
|
AC contactor |
- |
Schneider,France |
|
Circuit Breaker, Knob Button Switch |
- |
Schneider France、 DELIXI china |
|
Thermostat |
- |
Huibang ,china |
|
Solid state contactor |
- |
Meiger,Taiwan |
|
Bearing |
- |
NSK Japan、Haerbin China |
|
Cylinder，electromagnetic valve |
- |
AirTak,Taiwan |
Spare part with machine:
|
NO |
Name |
Specification |
QTY |
Remark |
|
1 |
Copper fork |
- |
20pcs |
Total:1Set |
|
2 |
Blade |
SKS-80x9x0.4mm |
2Box |
|
|
3 |
Blade clam |
- |
1PC |
|
|
4 |
Knife back |
- |
1PC |
|
|
5 |
Discharge port stopper |
- |
1PC |
|
|
6 |
Rewind board |
- |
1PC |
|
|
7 |
Heating bar |
- |
1PC |
TOOL：
|
NO |
Name |
Specification |
QTY |
Remark |
|
1 |
Tool box |
- |
1PC |
Total:1Set |
|
2 |
Allen wrench |
3-10 |
1PC |
|
|
3 |
Double head wrench |
8-22 |
1PC |
|
|
4 |
Adjustable wrench |
200mm |
1PC |
|
|
5 |
Phillips screwdriver |
200mm |
1PC |
|
|
6 |
Slotted screwdriver |
200mm |
1PC |

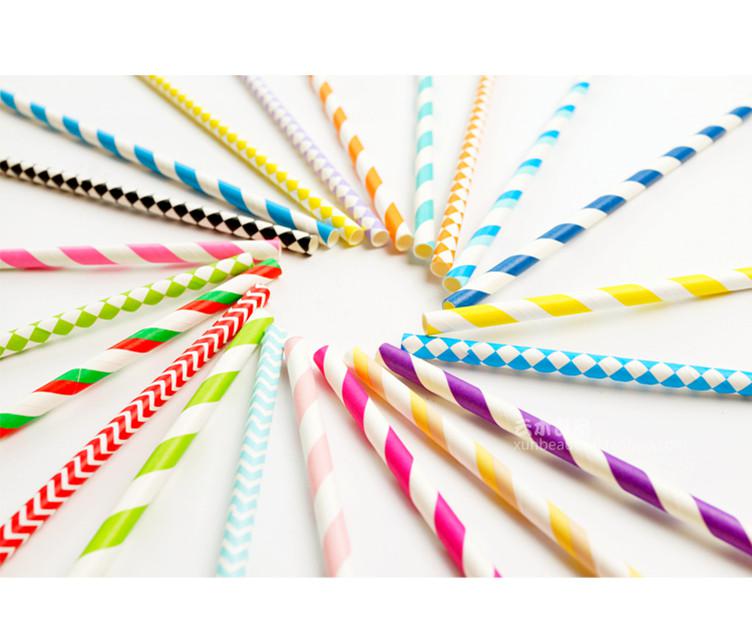

Sample picture:
