HPST-512 HIGH SPEED PAPER STRAW MACHINE
APPLICATION:
Suitable for small diameter (5-12 mm) Paper straw, ball refill, yarn inner tube, etc.
FEATURE:
1.Numerical control servo cutter device, high precision cutting;
2.Automatically cut, automatically fall
pipe, automatically change speed and revert;
3.Computer PLC control, touch screen man-machine interface operation;
4.Round knife cutting, incision more smooth, performance more stable;
5.With online multi-cut blades, no need secondary cutting, save labor and time.
Parameters:
Number
of roller
3 ply
Motor
power
3
KW
Straw diameter
5 - 12mm
Reducer
model
RV110-1:15
Straw
thickness
0.5-
1mm
Transmission
reducer
RV30/40-1：7.5
Core
mould fixed way
Flange
chuck
Servo
motor
Dongyuan，
taiwan
winding
head
2
Servo
driver
Dongyuan，
taiwan
Cutting
control
Servo
synchronism multi-blade cutting
PLC
Controller
DELTA DVP28SV
Cutting
mode
6
knife
Touch
screen
MCGS
TPC7062
Gluing
way
Single
side
Inverter
Yaskawa
3.7KW
Operator
1-2
person
Contactor
CHNT
Winding
speed
30-45 M/min
Signal
part
SHHG
Speed
control
Transducer
Pneumatic
par
AIRTAC
Feeding
material
Automatic
Fix
length way
Optoelectronic
switch / Encode
Voltage
220V3P/60Hz
Part of machine
Air
pressure
0.6Mpa
Paper
frame
3ply
Swing
angle adjustment
Automatic
Glue
frame
3ply
Weight&size
Winding
belt
5pcs
Machine
size
3000*1000*1450
Winding
core stick
2 pcs
Work
Area space
6000*6000
mm
Cutting
knife
6
pcs
Machine
weight
1200KG
Tool
box
1
set

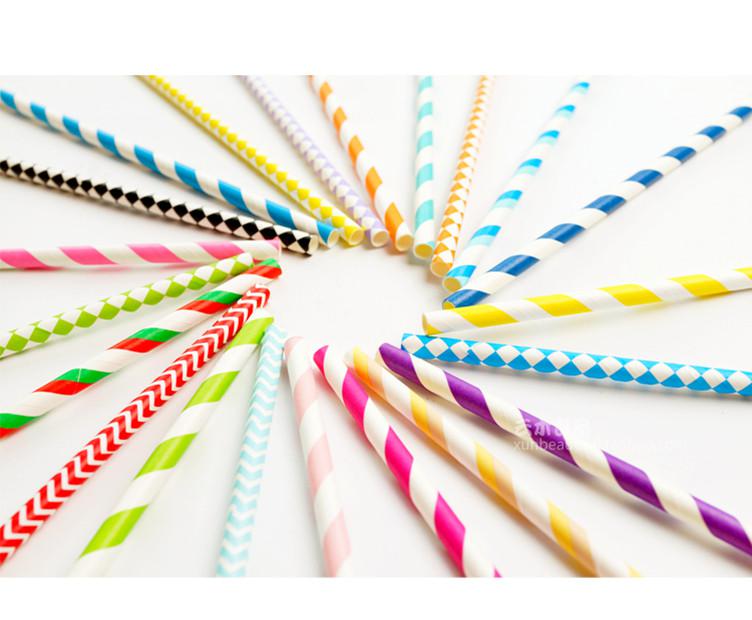

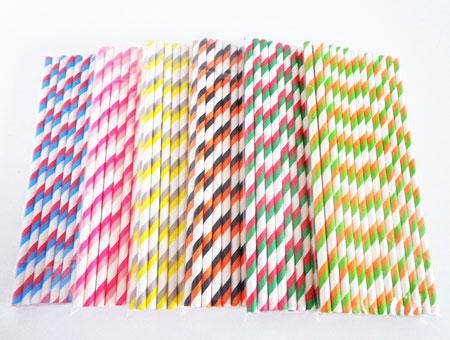

Sample picture:
